S_Anglewinder - AllinOne - Scale 1/32
Ref. NR3D2102371

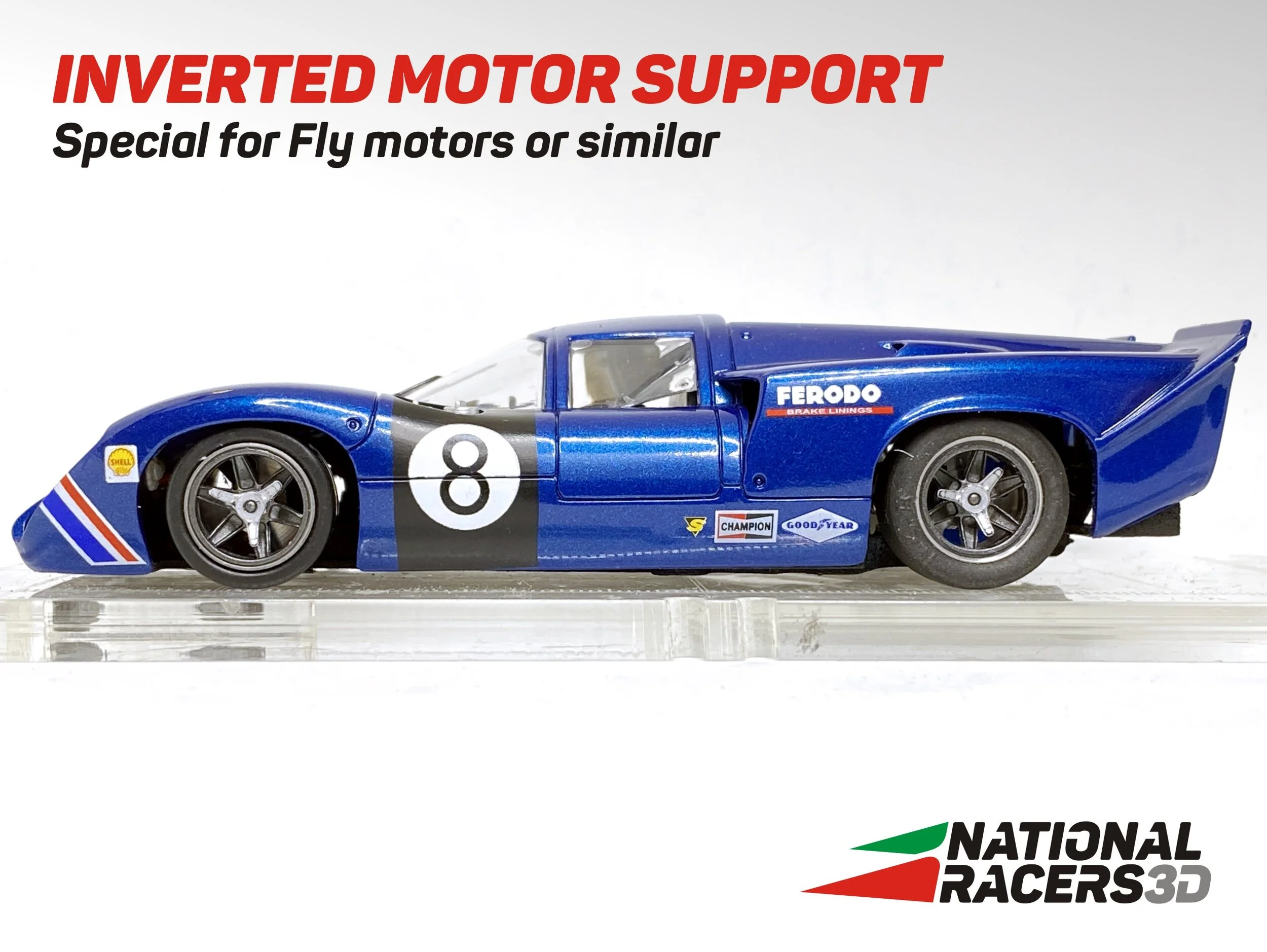

• Special for Fly motors or similiar

• High performance 3D Anglewinder replacement chassis to improve your model handling and speed in all kinds of tracks.

• Built-in S_Anglewinder short can motor mount with All-In-One flex design, allowing 2 or 4 suspension/fixing points with several setup options**.

• Rear axle with 0,75mm offset and with support for conventional bearings or ball bearings (diameter: 4.75mm).

• Compatible with NR3D front suspension system. Description with assembly instructions available for download here.

• Front axle height can be adjusted using bushings and M2 screws.

• Depending on the model / brand of motor used, it may be necessary to lightly trim the interior close to the motors's electrical contacts in order to prevent them from touching the body and limiting the movement of the rear suspension. No additional trimming required for proper fit.

• On first/original versions of the Fly model original interior should be replaced by lexan interior or similar. With some extra work original interior can be cut and adapted to work with this configuration. In the latest releases, the interior is fully compatible with this chassis and there is no need to replace the interior.

• Only compatible with short can motors.

• Light weight and strong.

• Parts supplied: Chassis, 4x 1mm spacers, 4x spring stoppers for front suspension option and specific rear suspension top clamping bar.

** See product photos for more informations about chassis setup.​
